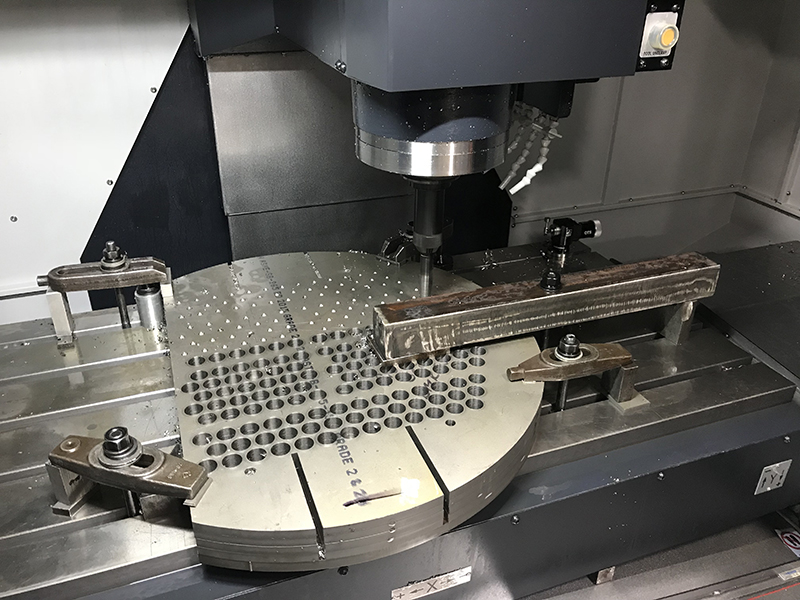

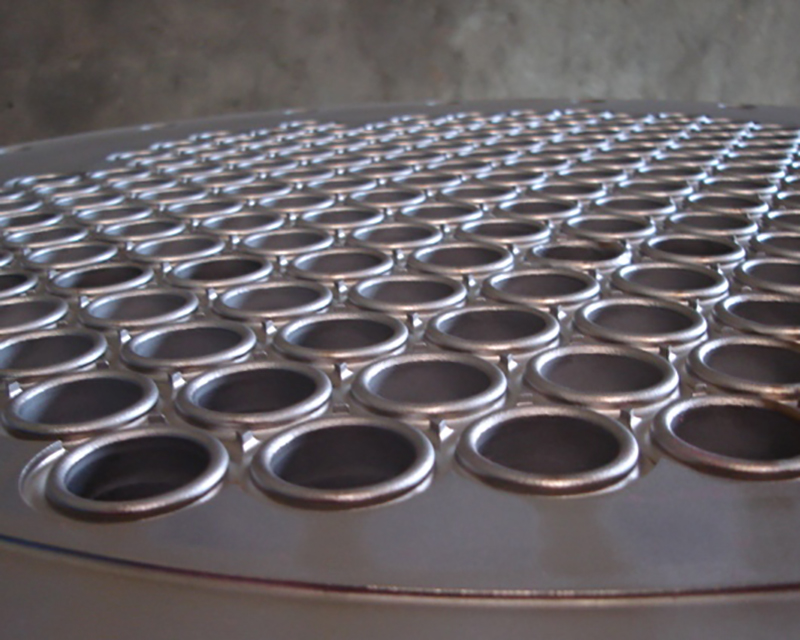

We have over a dozen CNC and manual mills and drills of a variety of sizes and functions, including seven CNC milling centers in our New Jersey facility and two CNC Quickdrills™ in our Montreal location, both of which can drill tube sheets faster than 20” per minute and greater than 10” thick.  Of the seven CNC milling centers, two have 4-axis capability being able to rotate pieces over 60” in diameter.  Our largest machining centers in NJ are a 3-axis CNC HBM with a 13-foot travel and a CNC vertical Quickmill™ with an 8’ x 20’ travel.

We have nine dedicated machinists in New Jersey and five in Montreal.

The list of Milling/Drilling/Turning equipment below is specific to our NJ facility where we perform both machining for in-house projects and a machining subcontractor to hundreds of OEMs across North America.  Our machines in Canada are not listed below as they mainly perform work in house to serve our fabrication division.

CNC Milling Machines (Qty 4)

Doosan Mynx 6500/50 Vertical milling machine Doosan Mynx 7500/50 Vertical milling machine Doosan Puma vts1620m Vertical Lathe/Mill Quickmill

New in 2017

Travel: x:50”  y:26.375”  z:24.6”

Table: 55” x  26.375”, cat 50, Fanuc control , 30 ATC, 20 HP motor, 6000 rpm

New in 2017

Travel: x:60”  y:30”  z:24.6”

Table: 63” x  29.5”, cat 50, Fanuc control , 40 ATC, 25HP motor, 6000 rpm

New in 2017

Travel: x:50”  y:26.375”  z:24.6”

Table: 55” x  26.375”, cat 50, Fanuc control , 30 ATC, 20 HP motor, 6000 rpm

New in 2002

Fanuc CNC control

Table size:96” x 240”

X travel:  96”

Y travel: 240”

Z travel: 24”

Has 4th axis, full automation



CNC Boring Mills (Qty 3)

Toshiba Horiz. BTD-13R-22 Toshiba Horiz. Boring Mill BTD-11ER16 Toshiba Horiz. Boring Mill BP-13P40

New in 1988

Tosnuc 777.2 CNC control

Table size: 77” x 86.5”

X travel: 118.1”

Y travel: 90.5”

Z travel: 63”

Full 360 degree rotation

New in 1988

Tosnuc 777.2 CNC control

Table size: 55” x 63”

X travel: 78.7”

Y travel: 59”

Z travel: 57.1”

Full 360 degree rotation on table

New in 1998

Tosnuc 888 CNC control

Table size: 70” x 155”

X travel:  160”

Y travel: 90”

Z travel: 60.8”
