Turning
Our machines in Canada are not listed below because they mainly perform work in house to serve our fabrication division.
CNC Turning:

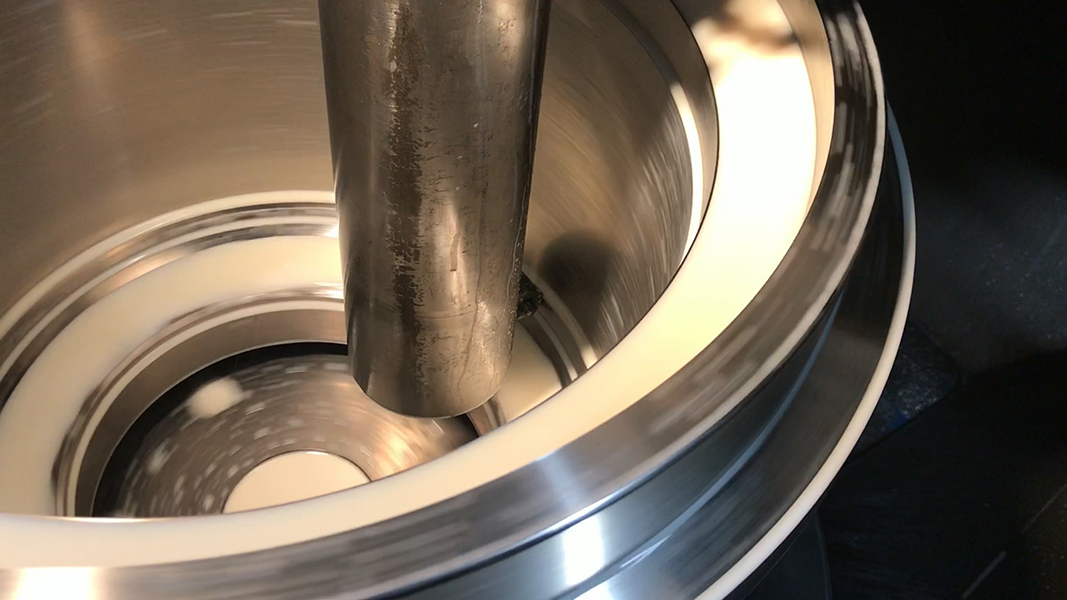

For precision turning and turning operations requiring multiple set-ups, we have a CNC lathe that can turn pieces 15” in diameter by 40” long and a CNC vertical turning center that can turn pieces 24” in diameter by 24” high.
CNC Turning Lathes (Qty 5)
|
Doosan v550 vert. Turning Lathe |
Doosan Puma GT2600l Lathe | Doosan Puma 300LC Horizontal Lathe | Doosan Puma 700XLY Horizontal Lathe | Doosan Puma VTS1620M Lathe |
|---|---|---|---|---|
|
Vertical New in 1999, 2005 Maximum swing: 31.5” 50 hp motor X axis travel: 15.4” Z axis travel: 30.7” Max cutting height: 29.5” Max cutting diameter: 28.7” Fanuc control (Quantity 2) |
Horizontal New in 2017 Max turning diameter: 18.11” Bar capacity: 3” Chuck size: 10” Max turning length between centers: 39.4” Fanuc control , 29.5 HP motor, 3500 RPM
|
Horizontal New in 2000 Max turning diameter: 17.8” Chuck size: 12” Bar capacity: 4” Max turning length between centers: 50.4” Fanuc control , 35 HP motor, 2800 RPM |
Horizontal New in 2018 Max turning dia: 35.4” Chuck size: 24” hydraulic Bar capacity: 6” Max turning length b/w centers: 198” Fanuc control , 60 HP main motor, 1800 RPM Z axis travel: 199” X axis: 21.5” Y axis: 7.86" C axis travel: 0.001 degree indexing |
Vertical New in 2017 Max turning dia: 78” Chuck size: 63” hydraulic Height: 60" |
Manual Turning:
We have 3 manual lathes in NJ and 4 in Montreal, the largest of which was built in 1953 (to turn battleship gun barrels) and can turn up to 30” diameter by 372” long and has a 40.5” swing. We also have an open-ended lathe for beveling pipes to 16” in diameter.
Manual Turning Lathes (Qty 3)
|
Cincinnati Hypro Manual Lathe |
Monarch Manual Lathe | TOS Manual Lathe, SN71C |
|---|---|---|
|
New in 1949 Max turning diameter/swing: 89.5” Max turning height: 67.5” Digital readouts on both columns Max rpm: 100 |
New in 1953 Max turning diameter: 40” Chuck size: 32” Bar capacity: 2.5” Max turning length b/w centers: 446” Digital readouts on both axes |
Max turning diameter: 24” Chuck size: 19.5” Bar capacity: 2.5” Max turning length b/w centers: 72” |
