TiFab supplies titanium pipe to the U.S. Navy, chemical plants, pulp mills, and offshore oil and gas platforms. It is common in these environments due to its corrosion resistance and high strength to weight ratio. Reduced corrosion allowances turn into thinner wall pipe, so Sch 10 is the most common thickness we supply.
TiFab can supply you with seamless and welded titanium pipes ranging from as small as ½” to as large as 96”.Seamless pipe (B861) available for sizes ¼” to 6”. Welded pipe (B862 or B265 rolled & welded cylinders) available for sizes 6” to 96”.

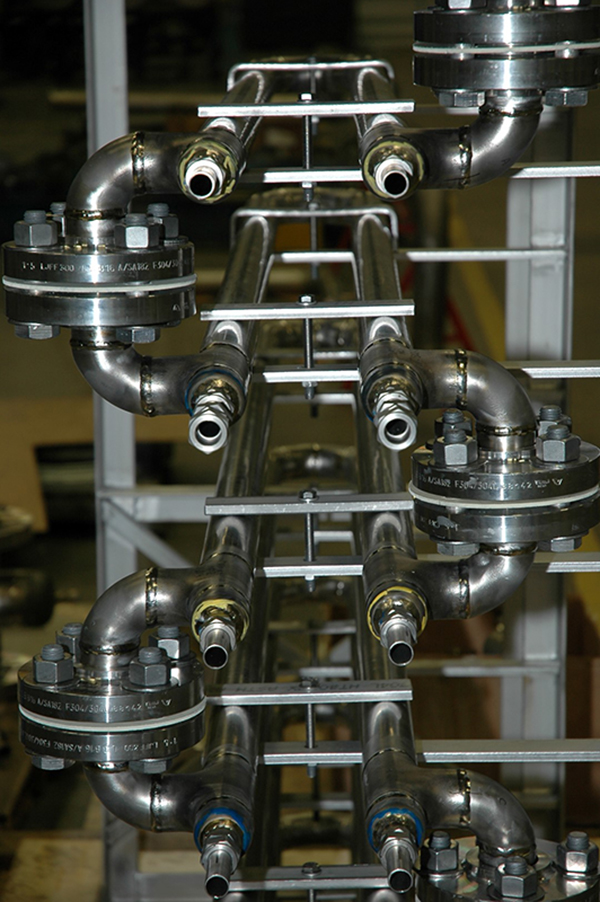

TiFab manufactures titanium pipe spools 6” and below from both seamless (ASTM B-861) and welded (ASTM B-862) pipe, typically in schedules 10s, 40s, and 80s. TiFab manufactures sizes 8” and by rolling and welding annealed titanium plate (ASTM B-265) with 100% x-ray (RT) and penetrant testing (PT). Final hydrostatic test is completed when we are also performing full spool fabrication (optional).
Titanium Pipe Materials:
Titanium Piping Industries:
Titanium Pipe Specifications
| Nominal Size (Inches) |
Thickness | Lengths (feet) |
|---|---|---|
| 1/2" | Sch. 10, 40 | Any length (std is 20' random) |
| 3/4" | Sch. 10, 40 | Any length (std is 20' random) |
| 1" | Sch. 10, 40, 80 | Any length (std is 20' random) |
| 1.5" | Sch. 10, 40, 80 | Any length (std is 20' random) |
| 2" | Sch. 10, 40, 80 | Any length (std is 20' random) |
| 3" | Sch. 10, 40, 80 | Any length (std is 20' random) |
| 4" | Sch. 10, 40, 80 | Any length (std is 20' random) |
| 6" | Sch. 10, 40, 80 | Any length (std is 20' random) |
| 8" | Sch. 10, 40, 80 | Any length (std is 20' random) |
| 10" | Sch. 10, 40, 80 | Any length (std is 20' random) |
| 12" | Sch. 10, 40, 80 | Any length (std is 20' random) |
| 14" and up | Sch. 10, 40, 80 | Any length (std is 20' random) |
