Titanium Welded Assemblies

TiFab has been a trusted partner with the U.S. Navy shipbuilding contractors for over 30 years. Our technical team has worked hand in hand from R&D stage getting new titanium alloys qualified, through WPS and PQR development of all grades of titanium and nickel alloys, all the way through to NDE and testing procedure qualification.

We employ a combination of manual and automatic TIG and Plasma processes that are specifically tailored to the needs of each project. Titanium Fabrication has welded assemblies on every U.S. nuclear submarine and air craft carrier built in the last 20 years.

Titanium Fabrication has approved Fabrication Plans per MIL-STD-278, and can weld to the highest standards for U.S. Navy Shipboard Applications. We have NAVSEA approval for welding all grades of titanium, up to six inches thick, per NAVSEA Technical Publication S9074-AR-GIB 010-278.

We are proud to be the first DOD approved fabricator of Titanium Grade 32 (5-1-1-1) components, a material which we keep in inventory.

TiFab also has all the corresponding NDE procedures approved, and security measures in effect per the latest DOD restrictions.

TiFab fabricates our defense projects in adherence to:

  • NAVSEA S9074-AQ-GIB-010/248 (MIL-STD-248) — Requirements for Welding and Brazing Procedure and Performance Qualification
  • NAVSEA S9074-AR-GIB-010/278 (MIL-STD-278) — Requirements for Fabrication, Welding and Inspection, and Casting Inspection and Repair for Machinery, Piping, and Pressure Vessels
  • NAVSEA T9074-AS-GIB-010/271 (MIL-STD-271) — Requirements for Nondestructive Testing Methods

Welding Processes:

  • GTAW (TIG)
  • GMAW (MIG)
  • SAW (Subarc)
  • PAW (Plasma)

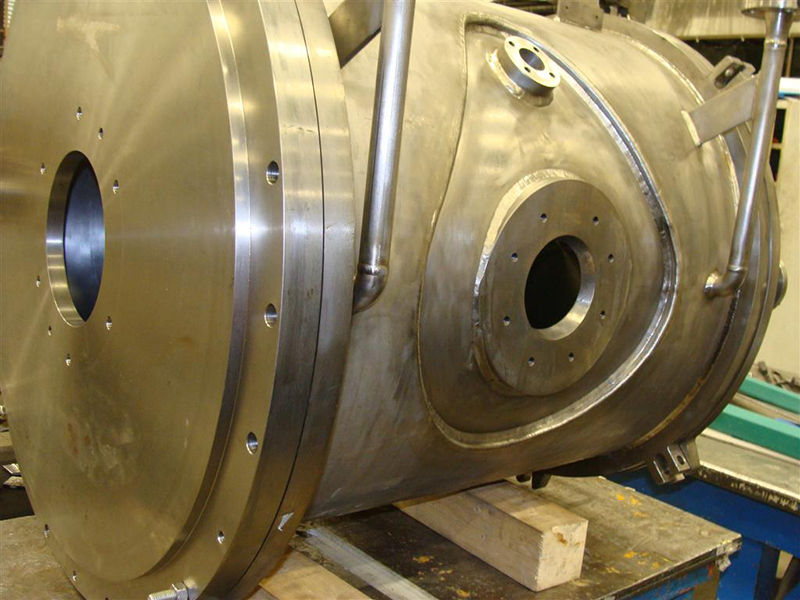

Mil-Spec Shipboard Titanium & Nickel Alloys Welded Assemblies

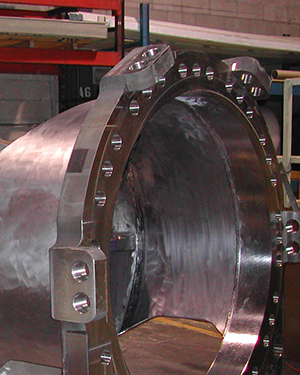

Titanium Pump Housing

Contact Us for an Assessment

TiFab is replacing many applications previously built as titanium castings with fully fabricated and machined weldments. Please contact us today to discuss if this is a possibility with your current titanium casting design.
